Auto pilot flying aircraft by its own thru computer system. Flight path stored In flight management and guidance computer. Any modifications required by NOTAMS notices carried out pilot thru MCDU.
Auto pilot command execute by ELAC elevator and aileron computer and FAC flight augmentation computer with AUTO THRUST. So auto pilot controls speed,attitude, altitude hold only and flight envelope protection. Auto thrust controls auto engine thrust in combination with auto pilot. Now pilot need to monitor and communicate with towers on regular intervals.Essentially, autopilot is a very smart and powerful computer that works similarly to a GPS. It can assist the pilot in flying the plane from departure to the touchdown at its final destination.
The autopilot is more accurately described as the automatic flight control system (AFCS). An AFCS is part of an aircraft's avionics -- the electronic systems, equipment and devices used to control key systems of the plane and its flight. In addition to flight control systems, avionics include electronics for communications, navigation, collision avoidance and weather. The original use of an AFCS was to provide pilot relief during tedious stages of flight, such as high-altitude cruising. Advanced autopilots can do much more, carrying out even highly precise maneuvers, such as landing an aircraft in conditions of zero visibility.
The first are the elevators, which are devices on the tail of a plane that control pitch (the swaying of an aircraft around a horizontal axis perpendicular to the direction of motion). The rudder is also located on the tail of a plane. When the rudder is tilted to starboard (right), the aircraft yaws -- twists on a vertical axis -- in that direction. When the rudder is tilted to port (left), the craft yaws in the opposite direction. Finally, ailerons on the rear edge of each wing roll the plane from side to side.
Autopilots can control any or all of these surfaces. A single-axis autopilot manages just one set of controls, usually the ailerons. This simple type of autopilot is known as a "wing leveler" because, by controlling roll, it keeps the aircraft wings on an even keel. A two-axis autopilot manages elevators and ailerons. Finally, a three-axis autopilot manages all three basic control systems: ailerons, elevators and rudder.
**Heading Hold
This will set the desired direction or heading that the pilot wants the plane to take. However, this doesn’t take into account changes due to wind or the desired route; the pilot has to correct that himself.
**Heading and Navigation
This setting will hold a direction as well as navigation. It’s similar to an automated car in that it follows the navigator’s input. The pilot continues to monitor as the plane flies.
**Altitude Hold
In addition to everything above, this feature allows the pilot to set a desired altitude that the aircraft will fly. Some planes have a fancier altitude hold that lets the pilot set a desired climb or descend rate that will make the aircraft automatically climb or descend and then hold that altitude.
**Instrument Approaches
This type of autopilot will fly preprogrammed instrument approaches. The only time the pilot has to take over is to execute the landing.
Why do Airbus aircraft have two auto pilot buttons?
They are controls for two separate autopilot systems that have the same functions, and serve as a backup and crosscheck for each other.
The vast majority of aircraft used by airlines have multiple autopilot systems. These autopilots are essentially the same, they act as backups in case one of the systems fails. The number of autopilot systems depends on the complexity of the aircraft. A Dash 8 has two... A B-767 has three.
Normally one autopilot at a time handles the flying of the airplane. An exception to this rule typically occurs in approach mode, when two (in the Dash anyway) autopilot systems at a time are tied into the flight guidance computer to allow for immediate redundancy should one autopilot fail so near to the ground.
**NOTE Notwithstanding FAR 135.93(d), autopilot minimum-use altitudes do not apply to autopilot operations when an approved automatic landing system mode is being used for landing. Automatic landing systems must be authorized in an operations specification issued to the operator, however.
Kindly refer the available sources for more information,
The Red Box range of ground power units (GPU) are designed to offer every variation of power needed for Aircraft, Vehicles, the rail industry and the military.
We have a full range of portable start units (including lithium GPU’s), continuous DC power supplies, combination start and continuous power units, transformer rectifier units.

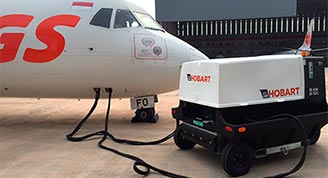

This is a ground power unit (GPU) which supplies the aircraft with electricity while the generators or the auxiliary power unit (APU) are not running. This is important especially during boarding, when the cabin lighting needs to remain on for passengers to embark or disembark. The GPU is also used to start the APU, which in turn provides electricity to start the engines and the generators. A ground power unit (GPU) is a vehicle capable of supplying power to aircraft parked on the ground. Ground power units may also be built into the jetway, making it even easier to supply electrical power to aircraft.
Many aircraft require 28 V of direct current and 115 V 400 Hz of alternating current. The electric energy is carried from a generator to a connection on the aircraft via 3 phase 4-wire insulated cable capable of handling 261 amps (90 kVA). These connectors are standard for all aircraft, as defined in ISO 6858.
Ground Power Unit. The GPU is usually diesel powered generator that outputs a very specific voltage on a connector. This connector is connected to the Nose of the aircraft to provide the electrical power. These are also available in special electrical to electrical converting equipment to eliminate the need for the Diesel engine. These are usually called FEP and were usually found at hubs. I should mention that onboard APU’s are quite loud and this is the reason they’re sometimes band at the gate.
Since the GPU takes care of the electrical power needs on the ground at the gate, the next question is air conditioning, either heating or cooling. This is taken care of from ground sources through traditional means with the conditioned air routed through large expanding yellow pipes which plug into the bottom of the airplane. This air then goes through the air ducts of the airplane to keep it cool or warm. Again, significantly cheaper than the wear and tear of the onboard packs and expense of running the APU. The auxiliary air is commonly found powered by Diesel engines or via electrical power mounted under the jet bridge.
The above two methods are used in just about every aircraft turn at the gate and allows the on-board APU to be be shutdown but the aircraft still have power and cool/warm air.
The typical sequence for push back is to start the onboard APU (usually by routing electrical power from the GPU connected to save on battery wear and tear). Once the onboard APU is running, the ground power and ground air conditioning (this is called low pressure air) are connected and the aircraft now powers itself independently. The tug pushes the airplane back, main engine is started and eventually APU shut down as the electric and air power come from the main engines.
However, occassionally, the onboard APU might be inoperable. This means that in order to start the main engines, a high pressure and high volume air source is needed to turn the main engines for starting.
This is achieved through the use of an air-start cart. These are massive, usually >300hp. Most are large Diesel engines turning large compressors as these are cheaper to maintain and fuel. However, in some extreme cases, such as the 777-300ER, the amount of air needed is *massive* and larger than readily available compressors or Diesel engines can provide. The options are to link several smaller units together or to take an on-board style APU and mount it to a cart to be used. In some cases, smaller compressors are used to feed large tanks which release their energy to the main engine to start.
The start up sequence in this case is that the GPU is left hooked up and a high pressure air cart is hooked up. A main engine is started using the external high pressure air. Once the main engine is running, a brave ground handling person very carefully crawls under the airplane to unhook the high pressure air hose and the GPU cable. Once removed and airplane free, it is then pushed back and continues as normal.
Aircraft is powered by external electrical power ("ground power"). 1. Switch on batteries. Aircraft is now electrically powered from external power. 2. Start APU by using external electrical power. Aircraft is now electrically powered from APU generator. 3. Disconnect external power. 4. Start engines with bleed air from APU. Aircraft is now electrically powered from engine generators. 5. Stop APU.
2. If the pitot tube and its drain hole are blocked, the airspeed indicator will act like an altimeter, reading higher airspeeds with an increase in altitude.
3. If the static port(s) become blocked and the pitot tube remains operable, the airspeed indicator will barely work and indications will be inaccurate.
FMS is like the GPS in your car, with waypoints programmed in between the origin and the destination. You program in where you are going, and the FMS will allow the airplane to hook up with the autopilot, and maintain the heading within a few feet accuracy.
The flight path is not always straight and it will find the most efficient path to fly between the destinations.
If you are flying toward a place where there's a thunderstorm en route, and the dispatcher may send an ACARS text message saying, "There's a thunderstorm, consider rerouting." Then the pilot will send back a message saying, "I got it, thanks,"
ACARS messages can be sent by text, but some aircraft have the ability to uplink by voice as well. The system also allows us to pull up the weather.
Watch our video -
How to Know Your Plane Part 1
Pilot can enter information from the ACARS into the FMS, but that doesn't happen automatically.
Most airplanes have the same major components. Maybe not all in exactly the same places. The Cessna 172M that I’m training in has high wings across the top of the fuselage.
The fuselage includes the cabin (where you put your butt), storage space and the controls. The firewall separates the fuselage from the powerplant, and generally the empennage, wings and landing gear are directly attached to it.
Wings
Or airfoils. If you didn’t know, that’s what provides lift.
Empennage
The entire tail group, consisting of fixed surfaces such as the vertical stabilizer and the horizontal stabilizer. The moveable surfaces include the rudder, the elevator, and one or more trim tabs.
Some empennage designs include a stabilator instead an elevator. A stabilator is a one piece horizontal stabilizer that pivots from a central hinge point.
Watch our video -
How to Know Your Plane Part 1
Landing Gear
Landing gear includes three wheels. A nosewheel airplane (like a Cessna 172) has one wheel located on the nose and is sometimes called tricycle gear. An airplane with a wheel at the back is said to have conventional landing gear. Sometimes conventional gear airplanes are called tailwheel airplanes or tail draggers.
Powerplant
Includes engine and propeller and is covered by the cowling or nacelle. The propeller generates the thrust needed to get you moving.
